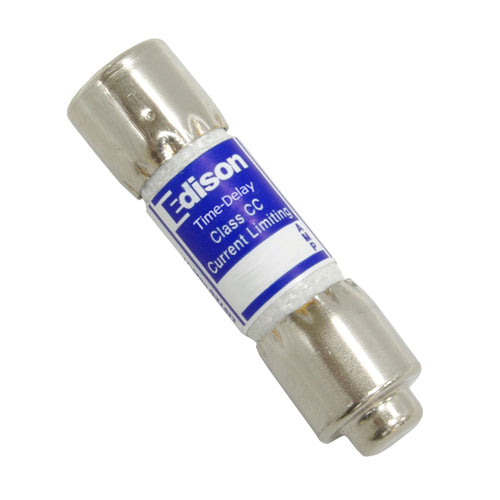

Cooper Fuses

Features

• A superior all-purpose, space-saving branch circuit fuse that meets most protection requirements up to 30 amps.
• Very compact; physical size is only 13⁄32" x 1 1 ⁄2" (10.3 x 38.1mm) with rejection tip.
• Faster response to damaging short-circuit currents and higher interrupting rating than mechanical overcurrent protective devices.
• Maximum 200kA interrupting rating for available fault current in today's large capacity systems. Helps ensure that future growth will not obsolete the system.
• Time-delay to avoid unwanted fuse openings from surge currents.
• Fast speed of response under short-circuit conditions for a high degree of current-limitation.
• The EDCC fuse can be sized close to full load rating
